24164 CCK30/W33 is a double-row spherical roller bearing. Its working arrangement brings spherical roller contacts and angular accommodation into the same contact system. The stated configuration identifies bearing type Spherical, construction Double Row, load direction Combined, and enclosure Open. Start the support assessment with radial support, ring seating and available alignment motion. Relate the stated construction and mating dimensions to the actual force direction, lubricant arrangement and duty.
Roller Geometry and the Working Reaction
The spherical roller arrangement of 24164 CCK30/W33 carries shaft reaction through the rollers and a curved outer raceway. Its self-aligning family geometry permits the inner assembly to change angular position relative to the outer ring. That movement helps accommodate angular displacement, but an allowable angle is not established by the family name. The exact row configuration and load combination remain part of selection. Connect the alignment requirement to the actual ring seats and surrounding clearances so that nearby parts do not restrict the intended motion.
Alignment freedom does not remove the need for accurate ring seating. Fits and ring temperature differences can alter running clearance, while structural deflection changes the way the rollers share reaction. Evaluate the bearing and its surrounding support as one mechanical system. In particular, do not use self-alignment to justify a loose shaft seat or assign a precision class that has not been specified.
Mating Dimensions and Package Relationships
The main dimensional interfaces identify bore 320 mm, outside diameter 540 mm, and width 218 mm. The bore type is Taper 1:30. The measurement system is Metric. Coordinate shaft location, housing seating and available axial space using those separate roles. A raceway diameter is not automatically a mounting bore, and a washer or cup width is not necessarily the total package width. Nominal size agreement alone does not prove that an alternative will fit and function correctly.
The stated dimensional limits include bore tolerance +0.04mm to 0, outside diameter tolerance -0.05mm to 0, and width/height tolerance -0.4mm to 0. These are interface limits, not a ready-made machining instruction for a shaft or housing. Consider which member rotates relative to the load, the stiffness of its seat and thermal changes during operation. The installed fit must preserve ring shape and the intended contact condition as well as permit assembly.
Geometric Control and Installed Contact Condition
The internal-condition entries identify radial clearance CN and Radial run-out: Standard. Precision, clearance and preload describe different aspects of a rolling assembly. Preserve the notation as stated without converting between standards or treating a clearance code as an accuracy class. The installed behavior depends on the contact geometry as well as the specified component limits.
Fit interference and temperature differences can change the internal freedom available after installation. Seat roundness, shoulder runout and structural deflection also influence contact sharing. Review these relationships when judging stiffness, starting friction or heating. A precision or clearance entry cannot independently guarantee the accuracy of the machine or identify a preload that has not been stated.
Component Materials and Contact Pairing
The component material entries specify rings as Chrome Steel, rolling elements as Chrome Steel, and cage as Steel. Each entry belongs to the component named, not to an assumed homogeneous bearing. Keep roller or needle material separate from the rings, cage and any springs. Their combination determines the contact pair and the surrounding mechanical interfaces; a retainer material alone says nothing about the raceway alloy.
Material selection must be related to the actual exposure and operating duty. Surface condition, heat treatment and the mating material affect rolling contact, while lubricant compatibility matters throughout the contact system. Assess contaminants and temperature with the stated component combination. An alloy or material label does not by itself establish chemical-service qualification, corrosion immunity or a guaranteed service life for the installed mechanism.
Ratings and Their Operating Basis
Applicable operating entries include dynamic radial rating 988035 lbf and static radial rating 1596144 lbf. Dynamic and static ratings serve different checks: fatigue assessment and contact deformation are not interchangeable. Neither figure alone is a permitted working load. Account for load combination, shock and the required reliability, preserving any speed, revolution or row-specific basis attached to a rating.
The operating limits list Max Speed (X1000 rpm): 0.7 and Temperature Range: -30～ to 200 ～C. Keep every qualifier and unit attached to its own value. A limiting speed, a reference speed and a lubricant-specific speed describe different conditions; none establishes a universal running speed. Check heat release, lubricant delivery and the surrounding support against the actual duty before setting an operating point.
Support Interfaces and Assembly Assessment
Use accurate shaft and housing seats with uniform shoulder support and controlled axial location. Fits must suit which member rotates relative to the working load while preserving ring shape and alignment. Apply installation force through the fitted member, not through the rollers. Clean mating surfaces and sound support are part of the contact assessment, not substitutes for the specified tolerances.
Check the installed clearance or axial setting, free motion and lubricant arrangement with the actual surrounding structure. Thermal differences and support deflection can alter the contact condition after assembly. For tapered arrangements, preserve the intended cup-and-cone relationship; for cylindrical or needle forms, verify the stated axial-location provisions. Do not infer numerical setting or replacement compatibility from nominal size alone.
Contact Protection and Lubricant Supply

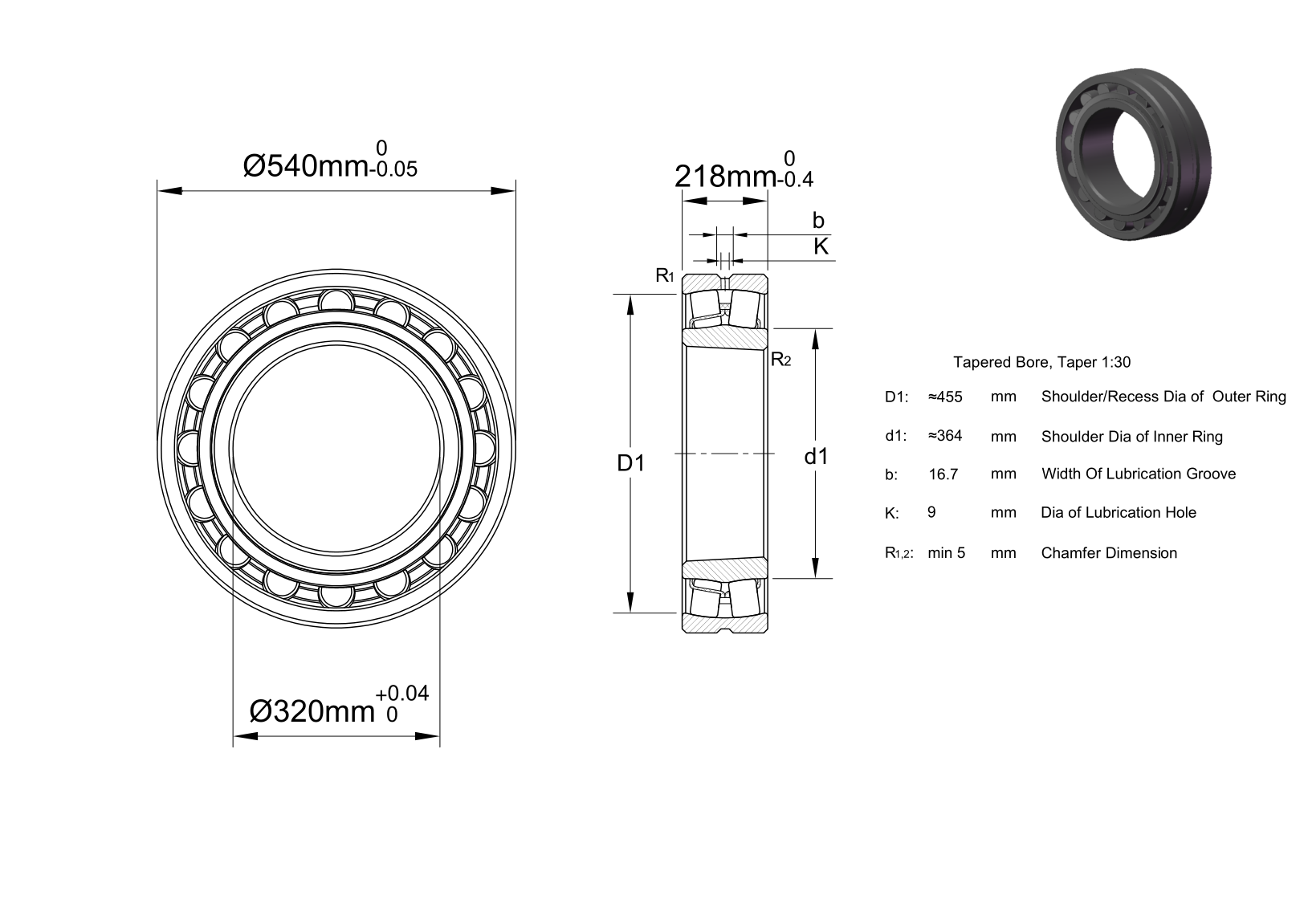

The open enclosure leaves contamination control and lubricant retention to the surrounding design. Determine how particles, fluids or debris might enter the working contact space and how lubricant reaches it during motion. Open construction is not evidence that lubrication can be omitted or that the assembly is protected against the operating environment. Lubricant-access entries identify Width Of Lubrication Groove: 16.7 mm and Diameter Of Lubrication Hole: 9 mm. These entries retain their individual roles and do not specify a replenishment interval.
Lubrication is specified as Required; select the lubricant and delivery arrangement for the application rather than assuming a factory grease fill. Film formation and heating depend on the contact materials, speed, load and temperature. Match viscosity and delivery to the complete duty, including startup and replenishment conditions. A general lubricant condition does not set a fill quantity, a service interval or a permissible operating temperature by itself.
Selection around the Contact and Support Task
For 24164 CCK30/W33, start with radial support, ring seating and available alignment motion. Match the working contact arrangement to the force or torque direction, then compare the mating envelope and the support supplied by the surrounding parts. Preserve the actual component combination, enclosure and lubricant condition when assessing nearby models. A shared bore or series designation is only the starting point for that comparison.
Carry the same configuration into the duty assessment. Starts, steady motion, reversals and thermal change can place different demands on the contacts and their support. Use the stated operating data on its own basis, keeping dimensional limits, internal setting and material roles distinct. The purchasing decision should therefore follow the complete mechanical relationship, including the separately provided parts, rather than nominal size alone.
