6908 2RS Ceramic Bearings is a full-ceramic deep-groove ball bearing. Its deep-groove ball contacts connect radial guidance to the shaft and housing seats. Axial location and thermal movement need to be resolved in that same support arrangement. Its mating envelope is bore 40 mm, outside diameter 62 mm, and width 12 mm. The sealed enclosure is part of the lubricant and contamination-control arrangement. Evaluate the stated component combination with these contacts and interfaces; the ceramic designation is not an operating rating.
Radial Guidance and the Raceway Contact
Force travels from the shaft seat through the inner ring, ball contacts and outer ring to the housing. Deep grooves provide radial guidance and allow axial reaction within the limitations of the bearing arrangement. The direction and magnitude of the actual forces matter more than the ceramic family label. The dimensions locate the seats; seat form and restraint determine how the radial contact system is supported. The construction entry for 6908 2RS Ceramic Bearings is Single Row. Its stated load direction is Radial.
A shaft may be well supported radially yet still need a deliberate means of axial location. Decide which bearing locates the shaft and which permits thermal movement. Excessive clamping or a distorted housing can concentrate the load on a small part of the circumference, changing heat generation and contact stress.
Choosing the Component Combination
The rings entry offers Silicon Nitride, Zirconia, and Silicon Carbide as selectable alternatives, not one fixed combination. The rolling elements entry offers Si3n4, Zro2, and Sic as selectable alternatives, not one fixed combination. The cage entry offers PEEK, PTFE, and Full Complement as selectable alternatives, not one fixed combination. Full Complement is an arrangement option, not a polymer or other cage material. Keep each material tied to its own part. A rolling-element compound does not identify the rings, and the cage remains a separate choice with its own guidance and lubricant-compatibility requirements.
Full-ceramic construction concerns rings and rolling elements. It does not make the cage ceramic or make different ceramic compounds equivalent. Compare the actual contact pair, support materials and temperature gradients. Density, elastic response and thermal expansion influence the operating condition, but a ceramic name alone cannot establish chemical compatibility, electrical isolation or an allowable duty.
Interpreting the Operating Data
The load data for 6908 2RS Ceramic Bearings include dynamic radial rating 771 lbf and static radial rating 558 lbf. Dynamic and static ratings are not alternative labels for the same operating limit. Dynamic data support a rolling-load life assessment; static data address the risk of lasting contact deformation. Resolve the forces at the bearing and apply the appropriate calculation before comparing the machine duty with either value.
The speed entry is 9 × 1,000 rpm. The temperature-range entry is -176 to 500 °F. Use these entries with the applicable enclosure, cage and lubrication conditions. A reference speed is not automatically a limiting speed, and a broad temperature entry does not establish continuous operation at every speed or load across that range. Heat generated at the contacts and removed through the surrounding structure must also be considered.
Enclosure and the Lubricated Contact
The sealed enclosure of 6908 2RS Ceramic Bearings sets the immediate boundary around the rolling contacts. Seals affect contaminant entry, lubricant retention and drag. Their suitability depends on the environment and contact conditions, not simply on the word sealed.
Lubrication is required. This describes the supplied or required condition, not an unlimited dry-running approval. Select lubricant type and quantity for the contact pair, cage, enclosure and duty. Changing a grease or an oil supply can change drag, replenishment and heat removal even when the dimensional fit remains the same.
Assembly Accuracy and Internal Freedom
Plan the assembly force through the part being fitted. Passing a press force through the rolling contacts risks local damage rather than seating the ring cleanly. Square shoulders, clean seats and controlled support around the circumference help retain the intended geometry. Clamping should locate the bearing without forcing a distorted seat into the rings. The shaft-mount entry is Press Fit.
The precision notation is ABEC-1. Retain that notation without assigning an unverified equivalence to another standard. The radial-clearance entry is C0. The separate radial-clearance value is 0.006mm to 0.020mm, rather than a conversion inferred from the trade designation. Precision, initial clearance and installed preload describe different aspects of the assembly. Interference and temperature differences can alter the running internal condition. Check shaft and housing fits, seat form and shoulder runout together; a close dimensional match cannot establish the accuracy of the complete rotating system.
Mating Surfaces and the Duty Cycle

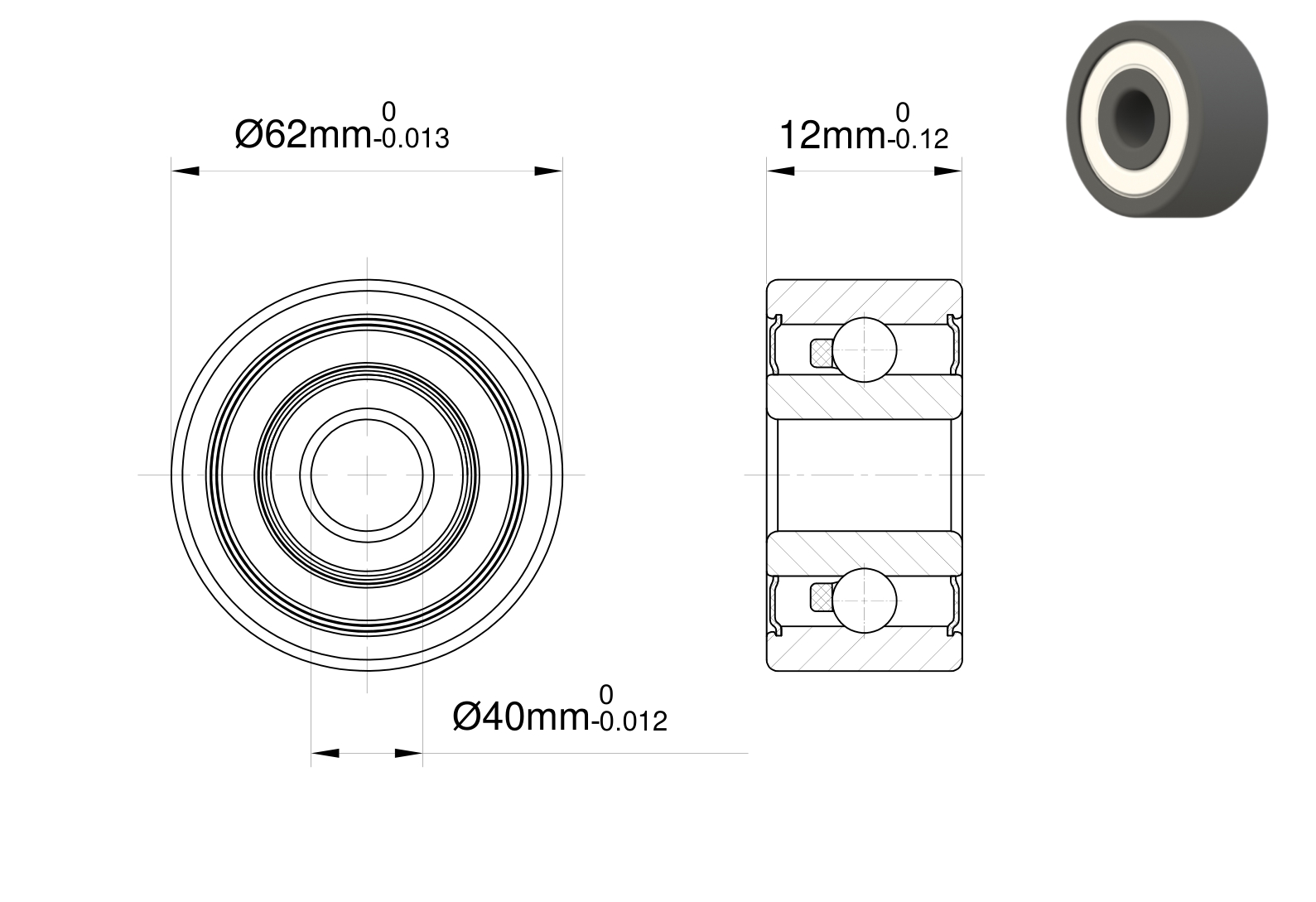

The mating-interface details include bore dia tolerance: -0.012mm to 0, outer dia tolerance: -0.013mm to 0, and width tolerance: -0.120mm to 0. A fillet that interferes with a ring corner prevents full seating, while an inadequate abutment can leave the load-carrying face poorly supported. These dimensions concern distinct surfaces and must not be substituted for the main bore, outside diameter or width.
For 6908 2RS Ceramic Bearings, assess starts, steady rotation, load changes and stops as parts of the same duty. The governing load case may not occur at the highest speed. Thermal growth can also shift the load between supports, so verify the locating arrangement, remaining clearance and lubricant supply over the operating cycle rather than at one nominal condition.
Selection around the Contact and Support Task
For 6908 2RS Ceramic Bearings, start with radial guidance, axial location and enclosure. Match the main envelope to the mating parts, then evaluate the stated component materials, load data, enclosure and lubrication as one operating configuration. Identify the locating support and the path for shaft growth before finalizing restraint. Keep precision and clearance entries in their own roles when assessing the installed condition.
The useful comparison is between complete support arrangements rather than ceramic names alone. Trace the governing duty through the contacts, seats and lubricant supply, including starts, steady rotation and thermal change. This connects the purchasing configuration to the mechanical task without substituting a material label for the arrangement calculation.
