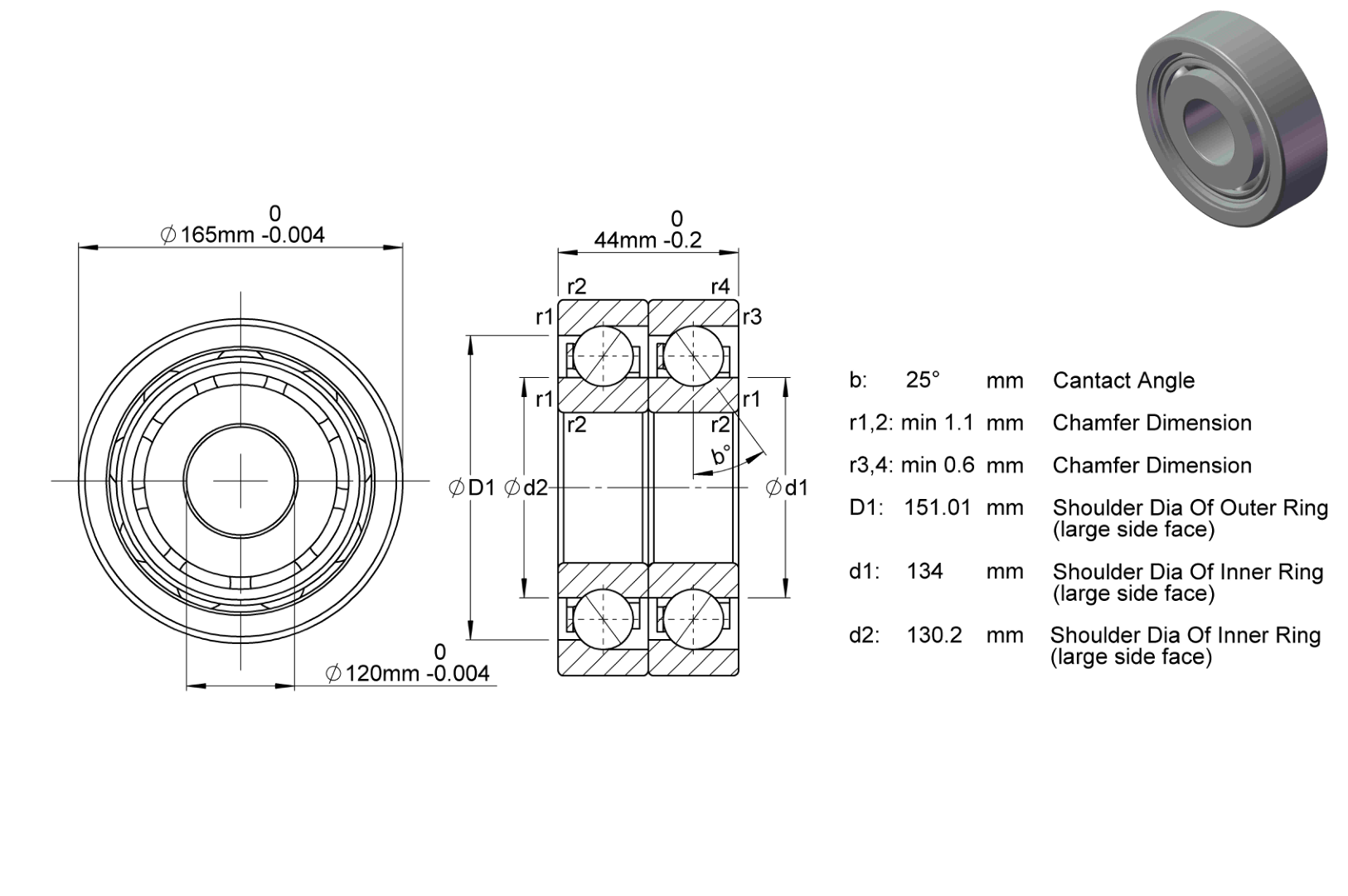

71924 ACE/HCP4ADGA is a hybrid ceramic angular-contact ball bearing. Its inclined ball contacts connect radial reaction to a directional axial reaction. Contact orientation and companion-bearing support therefore belong in the arrangement assessment. Its mating envelope is bore 120 mm, outside diameter 165 mm, and width 44 mm. The open enclosure is part of the lubricant and contamination-control arrangement. Evaluate the stated component combination with these contacts and interfaces; the ceramic designation is not an operating rating.
Orienting the Angular Contact
The inclined ball-contact line couples radial and axial reactions. A single angular-contact bearing has a preferred thrust direction, so its orientation belongs in the arrangement drawing rather than being decided during assembly. Contact angle describes geometry, not precision or preload. The envelope sets the mating space, while contact orientation determines how the assembly carries axial reaction. Its stated load direction is Angular Contact. The specified contact angle is 25°. The rolling-element quantity is 24.
For reversing thrust or a rigid spindle arrangement, assess the companion bearings and their orientation as a system. Preload, support spacing and thermal growth affect how force is shared. A nominal size match alone cannot establish the behavior of a paired arrangement or justify an assumed preload for this bearing.
Choosing the Component Combination
The rings material is chrome steel. The rolling elements material is Silicon Nitride(Si3N4). The cage material is Phenolic. Keep each material tied to its own part. A rolling-element compound does not identify the rings, and the cage remains a separate choice with its own guidance and lubricant-compatibility requirements.
Hybrid construction combines ceramic rolling elements with non-ceramic rings. This makes the contact pair central to thermal and elastic behavior. Different expansion rates can change the installed clearance, while rolling-element mass and stiffness affect contact response. These are engineering relationships to evaluate, not evidence of a particular machine’s insulation, maximum speed or service life.
Interpreting the Operating Data
The load data for 71924 ACE/HCP4ADGA include dynamic radial rating 16380 lbf and static radial rating 17212 lbf. Dynamic and static ratings are not alternative labels for the same operating limit. Dynamic data support a rolling-load life assessment; static data address the risk of lasting contact deformation. Resolve the forces at the bearing and apply the appropriate calculation before comparing the machine duty with either value.
The speed entry is 10 × 1,000 rpm. The temperature-range entry is -86 to 230 °F. Use these entries with the applicable enclosure, cage and lubrication conditions. A reference speed is not automatically a limiting speed, and a broad temperature entry does not establish continuous operation at every speed or load across that range. Heat generated at the contacts and removed through the surrounding structure must also be considered.
Enclosure and the Lubricated Contact
The open enclosure of 71924 ACE/HCP4ADGA sets the immediate boundary around the rolling contacts. With an open bearing, the surrounding assembly has to manage lubricant delivery and contaminants. Do not assume that the bearing itself excludes dust or retains an oil supply.
The bearing is supplied lubricated. This describes the supplied or required condition, not an unlimited dry-running approval. Select lubricant type and quantity for the contact pair, cage, enclosure and duty. Changing a grease or an oil supply can change drag, replenishment and heat removal even when the dimensional fit remains the same.
Assembly Accuracy and Internal Freedom
Plan the assembly force through the part being fitted. Passing a press force through the rolling contacts risks local damage rather than seating the ring cleanly. Square shoulders, clean seats and controlled support around the circumference help retain the intended geometry. Clamping should locate the bearing without forcing a distorted seat into the rings.
The precision notation is P4A. Retain that notation without assigning an unverified equivalence to another standard. Precision, initial clearance and installed preload describe different aspects of the assembly. Interference and temperature differences can alter the running internal condition. Check shaft and housing fits, seat form and shoulder runout together; a close dimensional match cannot establish the accuracy of the complete rotating system. The arrangement entries are matched arrangement: Universal matching, number of bearings in matched set: 2, universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>), and preload: Extra light preload / Class A. Preserve the stated arrangement and preload designation when selecting companion bearings; do not convert a designation into an unlisted force or assume an arbitrary pair will have the same installed behavior.
Mating Surfaces and the Duty Cycle
The mating-interface details include bore dia tolerance: -0.004mm to 0, outer dia tolerance: -0.004mm to 0, and width tolerance: -0.2mm to 0. A fillet that interferes with a ring corner prevents full seating, while an inadequate abutment can leave the load-carrying face poorly supported. These dimensions concern distinct surfaces and must not be substituted for the main bore, outside diameter or width.
For 71924 ACE/HCP4ADGA, assess starts, steady rotation, load changes and stops as parts of the same duty. The governing load case may not occur at the highest speed. Thermal growth can also shift the load between supports, so verify the locating arrangement, remaining clearance and lubricant supply over the operating cycle rather than at one nominal condition.
Selection around the Contact and Support Task
For 71924 ACE/HCP4ADGA, start with thrust direction, contact angle and companion-bearing arrangement. Match the main envelope to the mating parts, then evaluate the stated component materials, load data, enclosure and lubrication as one operating configuration. Assess load reversal and thermal movement with the stated matching or preload entries where supplied. Keep precision and clearance entries in their own roles when assessing the installed condition.
The useful comparison is between complete support arrangements rather than ceramic names alone. Trace the governing duty through the contacts, seats and lubricant supply, including starts, steady rotation and thermal change. This connects the purchasing configuration to the mechanical task without substituting a material label for the arrangement calculation.
